12 AWG Electric Heat Tracing For Long Pipeline Above Ground

Name: 12 AWG Electric Heat Tracing For Long Pipeline Above Ground
Brand: MICH
Price: 0.5 USD

China 12 AWG Electric Heat Tracing For Long Pipeline Above Ground factory

Brand Name : MICH

Model Number : EHTCELPAG

Certification : ISO9001

Place of Origin : China

MOQ : 1 meter

Price : USD0.5-USD5 per meter

Supply Ability : 10 million meters per year

Delivery Time : in one month

Packaging Details : plywood crates

Dimensions : 0.2"x0.3" (5mm x 8mm) 12 AWG

Dielectric Strength : Over 2000 volts

Property : Constant Wattage

Usage : Long Distance Pipeline

Field : Above Ground

Wattage : 39Watt/meter

Max. Exposure Temp. (°F) Power Off : 260

Voltages : Up to 480

Contact Now

Electric Heat Tracing Cable and Element for Long Pipeline Above Ground normally refers to the electric heating cable and its element for the heat trace of long distance pipeline. In the context of Electric Trace Heating design, a long pipeline is a pipe from 500 meter to many kilometres in length.

The heat trace is widely existed at the locations from a Refinery to a Thermal Power Station on the pipes, valves etc. The applications are furthermore for either on-shore or occasionally off-shore, crude oil production facilities or heavy fuel oil storage facilities etc.

The installed power output should be sufficiently capable to compensate for losses at the extreme working conditions although that condition may not be realized during the lifetime of facility.

The excess heat should be avoided and controlled as the problems caused by the overheat will result in system failure or reliability problems.

Electrical Supplies

Selection Parameters:

Constant Wattage Heating Cable	High Temperature Heating cable	Polyamide/Fiberglass Heating Cable	Harsh Environment Heating Cable	General Purpose Heating Cable
Available Voltages	120, 208, 240, 277 & 480 VAC	120, 208, 240, 277 & 480 VAC	120, 208, 240, 277 & 480 VAC	120, 208, 240, 277 & 480 VAC
Available Wattages	4, 8 & 12 watts/ft (13, 26 & 39 watts/m)	4, 8 & 12 watts/ft (13, 26 & 39 watts/m)	4, 8 & 12 watts/ft (13, 26 & 39 watts/m)	3, 5, 8 & 12 watts/ft (10, 16, 26 & 39 watts/m)
Maximum Exposure Temperature	500°F (260°C)	500°F (260°C)	500°F (260°C)	400°F (204°C)
Nominal Dimensions	0.2"x0.3" (5mm x 8mm) 12 AWG	0.2"x0.3" (5mm x 8mm) 12 AWG	0.2"x0.3" (5mm x 8mm) 12 AWG	0.2"x0.3" (5mm x 8mm) 12 AWG
Resistance to Moisture	Good	Good	Excellent	Excellent
Resistance to Chemicals	Good	Good	Excellent	Excellent
Resistance to Flame	Excellent	Outstanding	Excellent	Outstanding
Dielectric Strength	Over 2000 volts	Over 2000 volts	Over 2000 volts	Over 2000 volts

Product Tags:

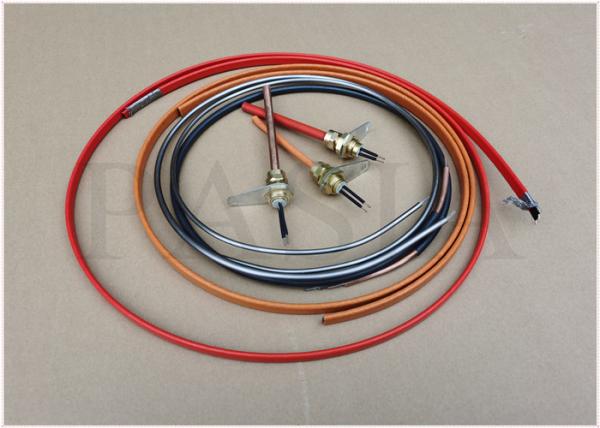

12 AWG Electric Heat Tracing For Long Pipeline Above Ground Images
